Compatibility
Rear axle: Quick Release only
Front axle: Quick Release only
Freewheel: Shimano/Sram, convertible to Campagnolo with optional driver body
Compatible Adapters and freewheel bodies
FTS-L Campagnolo freewheel body (L30871200)
FTS-L Shimano / Sram freewheel body (L30871100 - Delivered on the wheel)
Weight
Pair without tyre: 1650 grams
Front without tyre: 745 grams
Rear without tyre: 905 grams

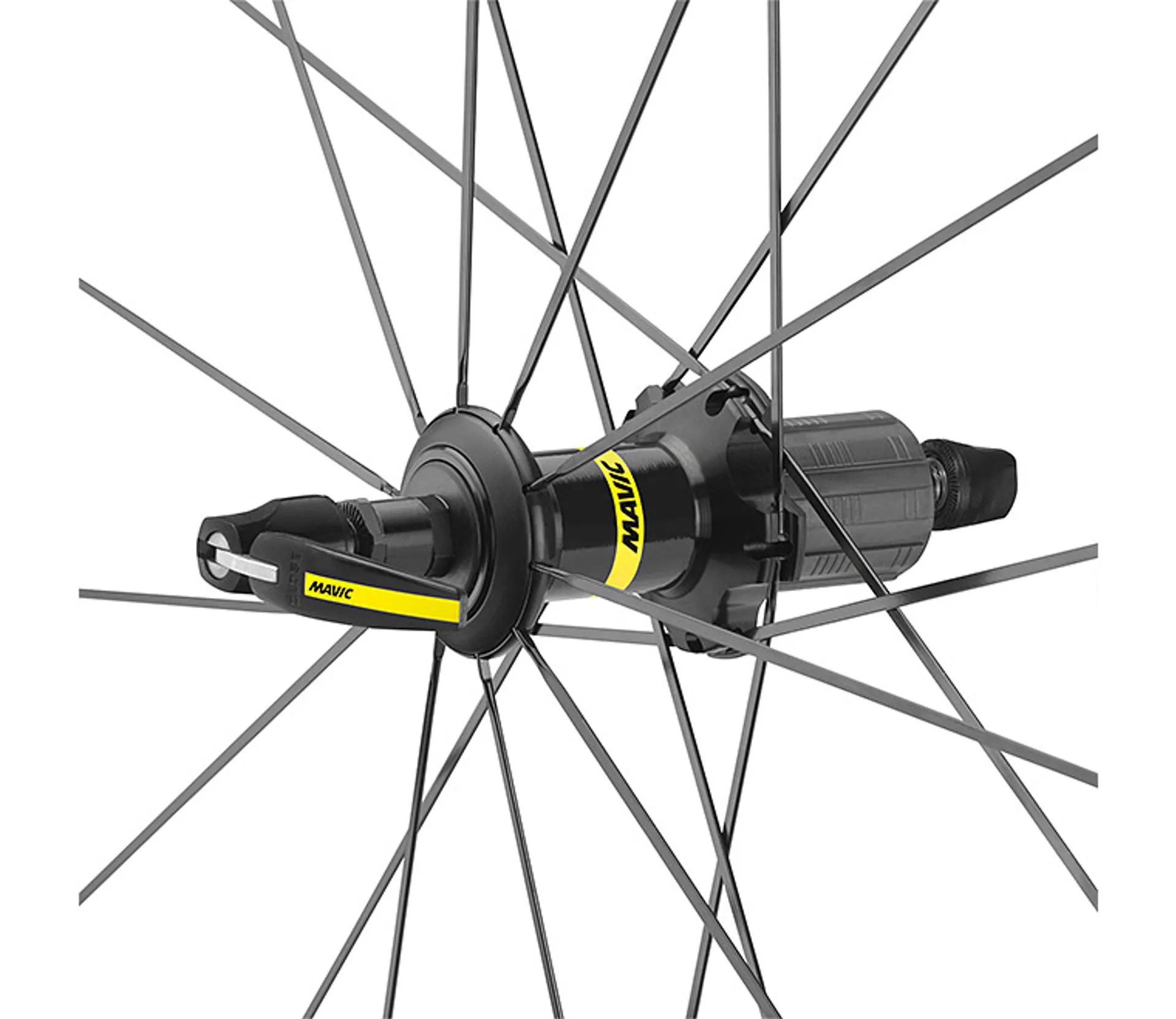

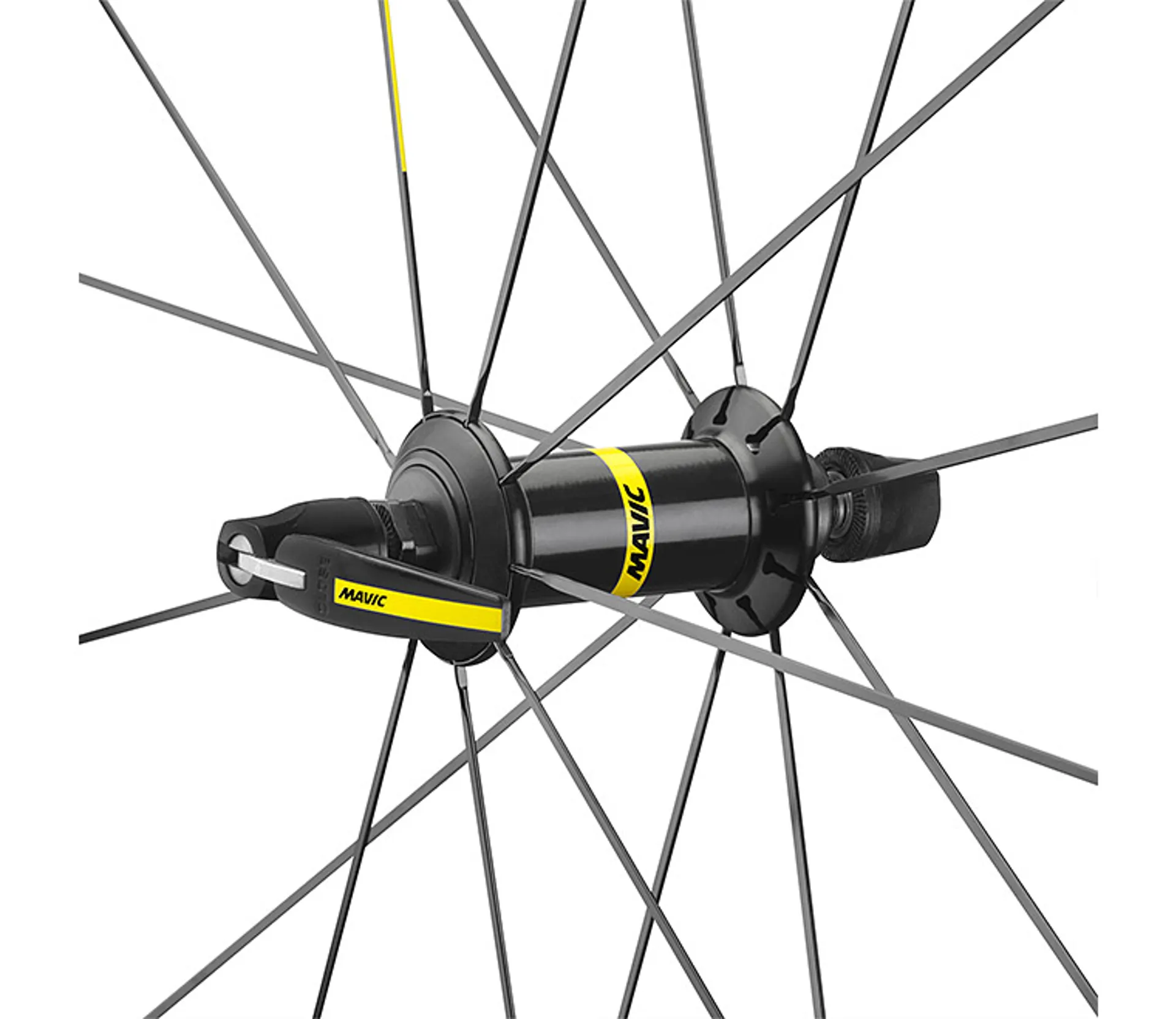

Hubs
Front and rear bodies: aluminum
Axle material: steel
Sealed cartridge bearings (QRM)
Freewheel: FTS-L steel
Intended Use
Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
ASTM CATEGORY 1 : road only
Recommended tyre sizes: 25 to 32 mm
Rims
ETRTO size: 622x19TC Road
Use with Mavic Tubeless Tape
Material: 3K carbon fibers
Brake track: carbon with iTgMAX technology
Drilling: traditional
Internal width: 19 mm
Height: 40 mm
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype
Spokes
Nipples: steel, ABS
Shape: straight pull, flat, double butted
Material: steel
Lacing: radial front and rear non-drive side, crossed 2 rear drive side
Count: front 18, rear 20
Tyre
Front and Rear Tread: 11 Storm single compound
Yksion Pro UST
UST Tubeless Ready
Dimension: 25-622 (700x25c)
Breaker: Polyamide, from bead to bead
Casing: 127 TPI
Versions
Color: Black only

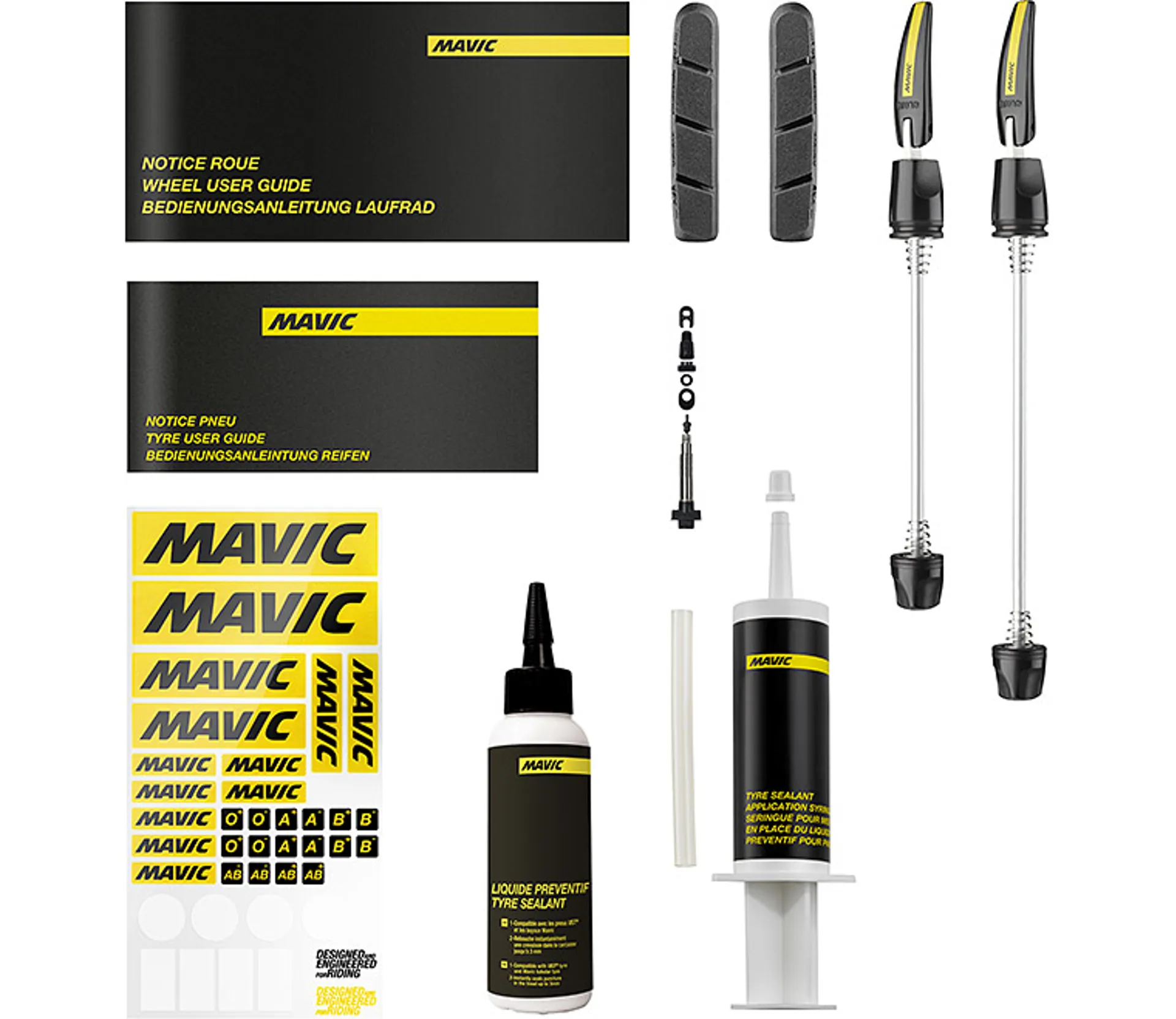

DELIVERED WITH
Tyre sealant syringe
Mavic tyre sealant (rear wheel)
Tubeless rim tape
BR301 quick releases
Carbon brake pads
UST valve and accessories
User guide
